ENDOFIXexo
The easy to use manual support arm for holding & guiding scopes.
Fields of Application
SCULLBASE SURGERY
ENT SURGERY
THORACIC SURGERY
OPEN SURGERY
ENDOFIX exo
- Steady field of vision
- Intuitive and precise scope guidance
- Quick and easy set up
- 100 % maintenance-free
- Adaptable to most scopes, MIS instruments and OR tables
Ergonomic & Efficient Surgeries

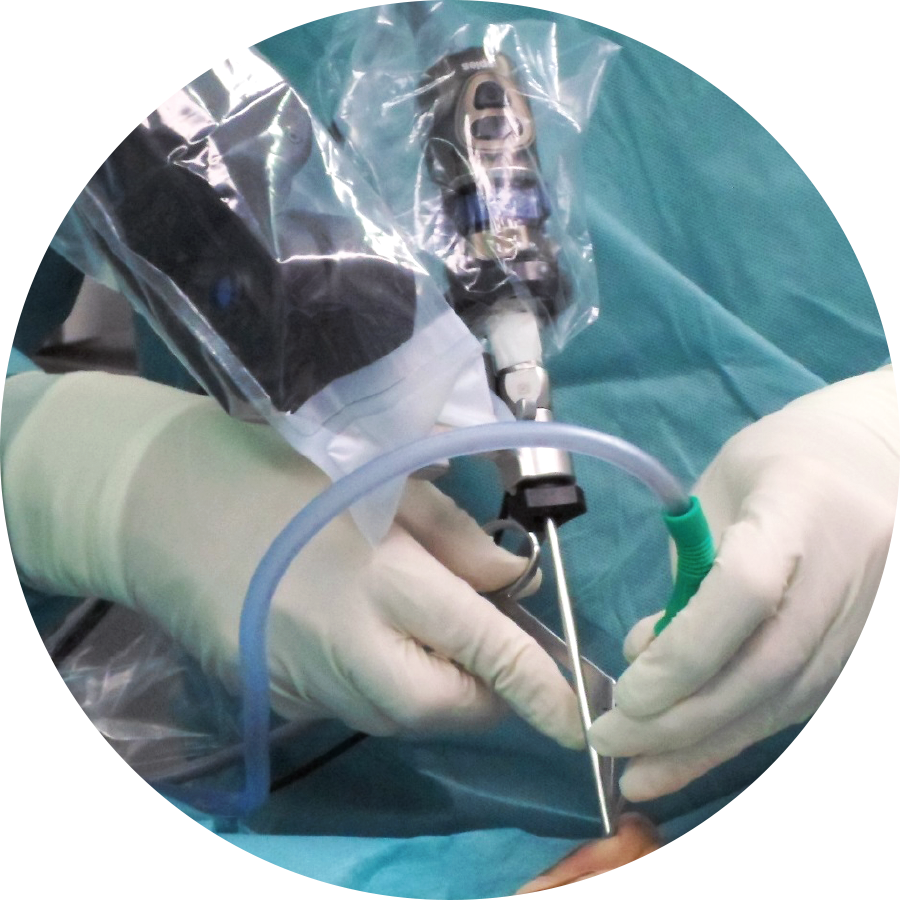

- The ENDOFIX exo supports the scope from above leaving sufficient space for instruments and ergonomic two-handed working.
- Thanks to its design, the ENDOFIX exo is stable and vibration-free enabling fatigue-free work.
- As a result the surgeon has ideal conditions for ergonomic and efficient work.
Safe and Sterile Procedures
Highly compatible
-

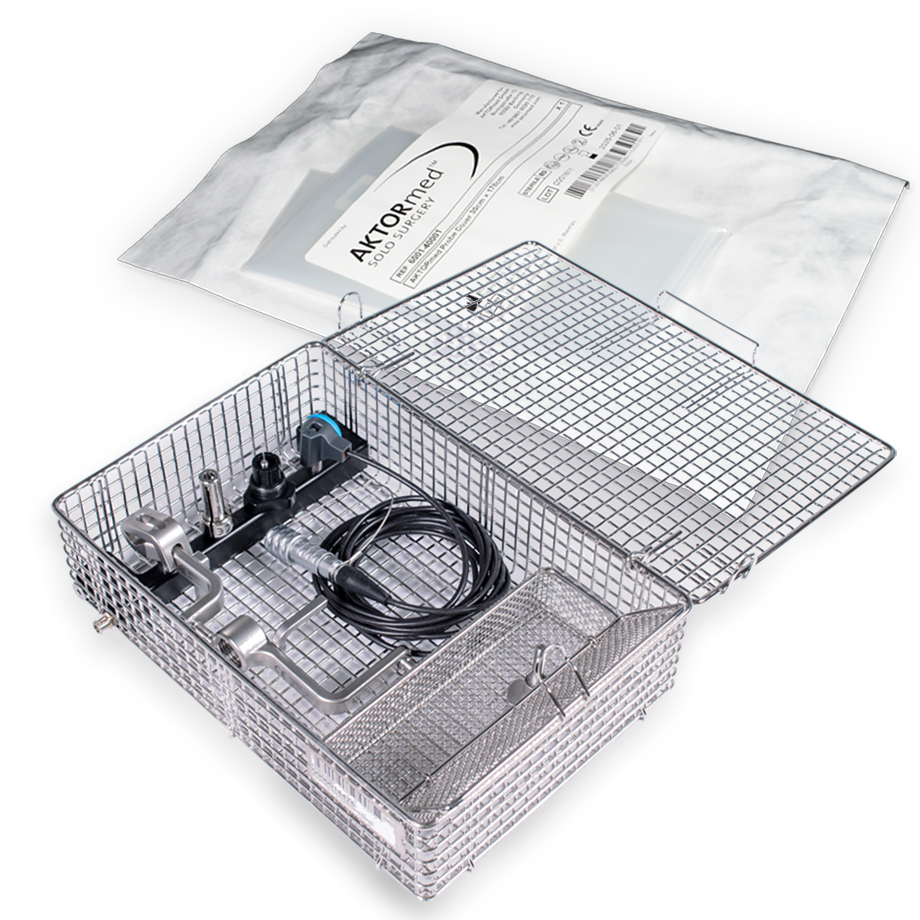

- Most components are multi-use and can be reprocessed in the ENDOFIX exo STERILISATION TRAY.
- Before every intervention the ENDOFIX exo is covered by a single-use STERILE COVER guaranteeing a safe and sterile procedure.
Intuitive & Precise Scope Guidance
- Precise scope movement thanks to the CONTROL.
- Everything is within easy reach of the surgeon’s fingers, enabling ergonomic working.
- Ideal conditions for efficient surgical work.
Safe Transport &
Space-saving Storage

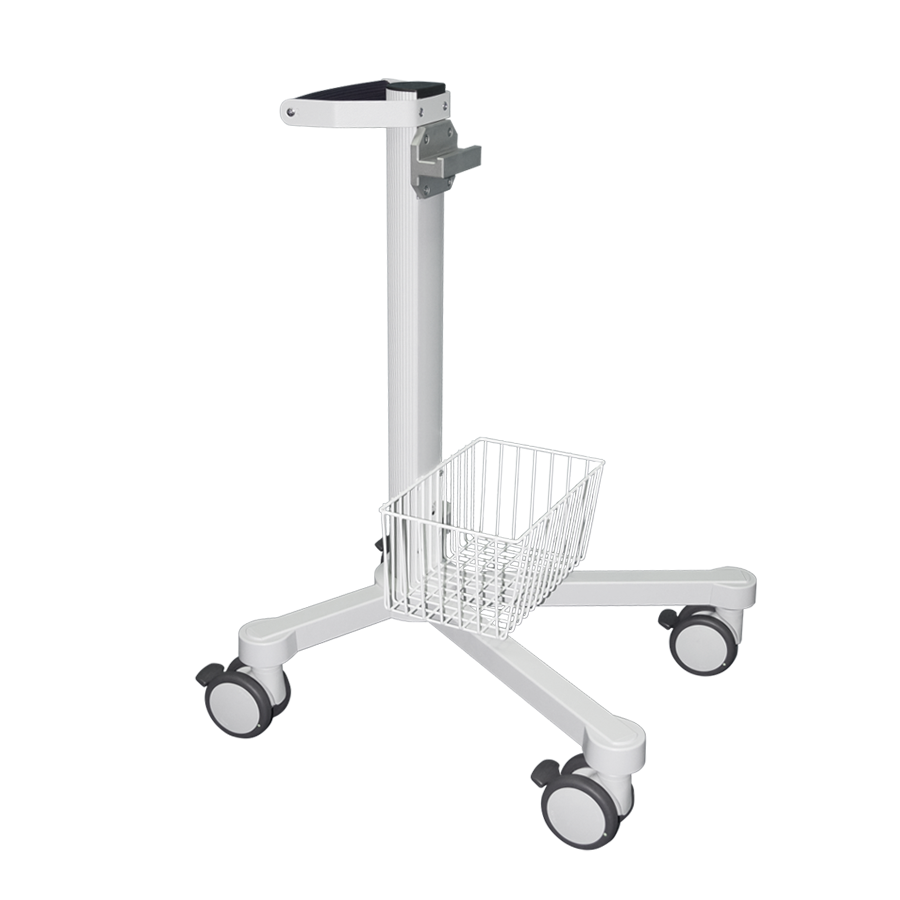

- After the surgical procedure, the ENDOFIX exo is hung onto the TROLLEY which is designed for easy and safe transport and also storage of our systems.
- Most components are multi-use and can be reprocessed in the ENDOFIX exo STERILISATION TRAY.
The right solution for all mount settings.

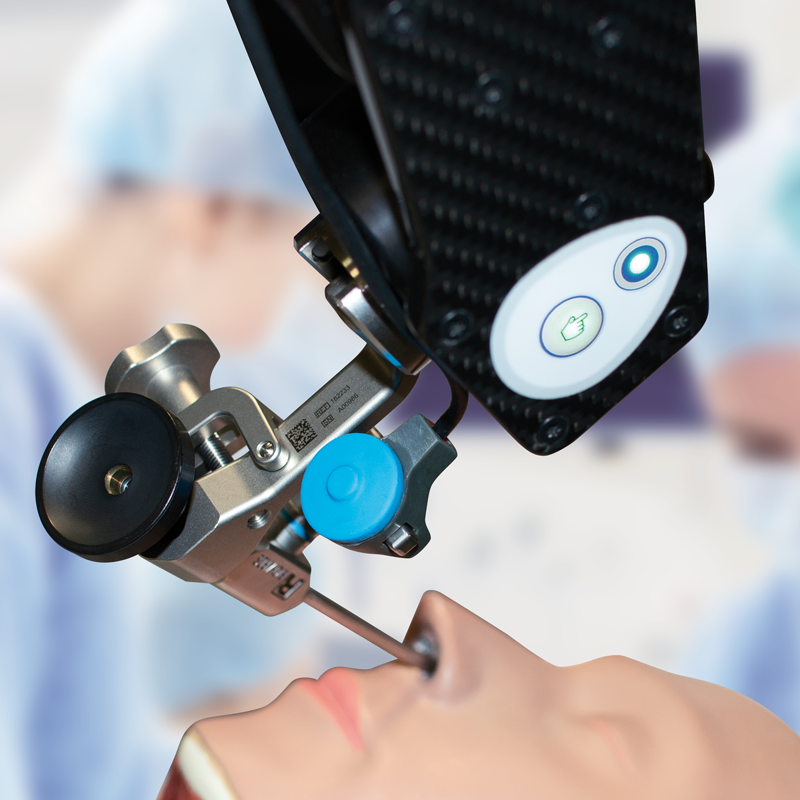

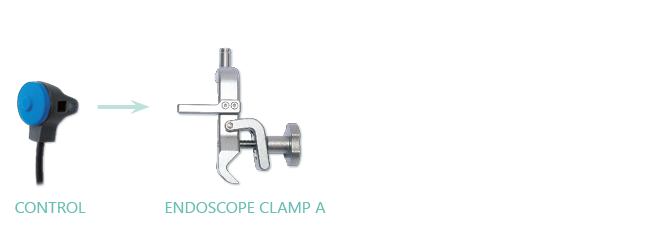

ENDOSCOPE CLAMP A
for scopes with cylindrical eyepiece ø7-20 mm

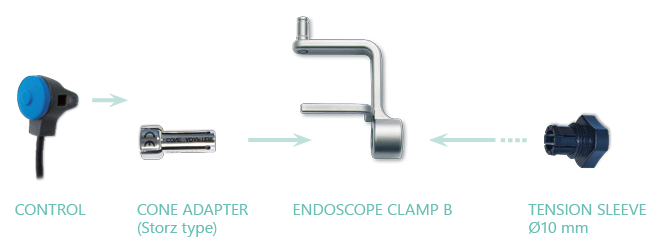

ENDOSCOPE CLAMP B
for scopes with ø10 mm or Storz-type cone

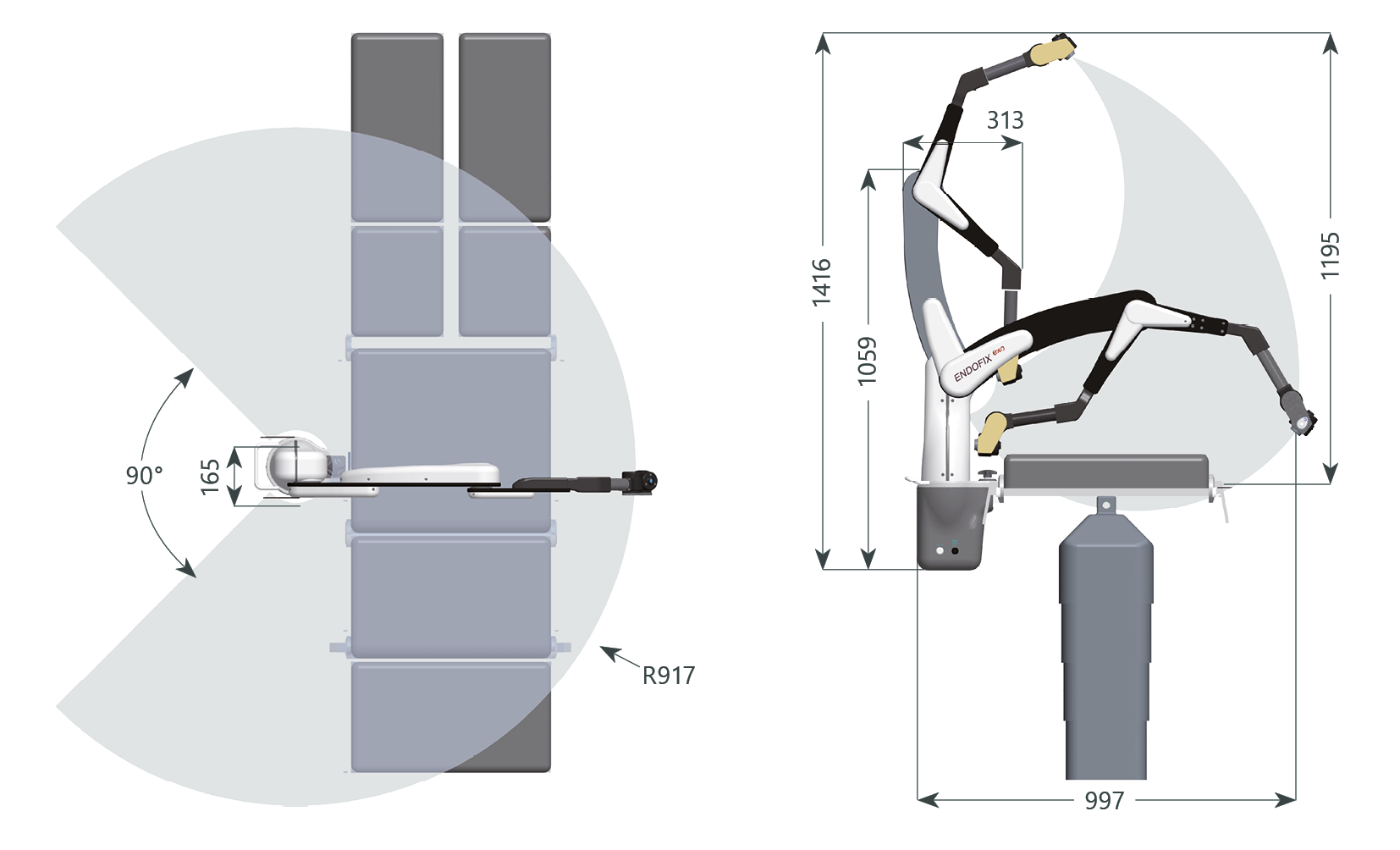

Movement Space
In respect to the endoscope
Rotation: 360° multi turn
Tilt: 0° to 20° in respect to the vertical axis
Zoom: > 300 mm
All dimensions ± 5mm
ENDOFIX exo is CE marked as class I product according to the MDR 2017/745.
The ENDOFIX exo is a manual operated holding arm. The intended use is to hold and guiding a endoscopic camera for the minimally invasive intervention in ENT, skull base and thoracic surgery. In open surgery, the ENDOFIX exo is used to hold and guide incident light optic (exoscope). The Endofix exo is used primarily by the surgeon performing the operation.
ENDOFIX exo is 510(k) cleared by FDA.
The ENDOFIX exo is indicated for use in interventions where a rigid endoscope/ exoscope is indicated for use. The device is intended to hold and position a rigid endoscope/ exoscope during general and neurological diagnostic and therapeutic procedures.
